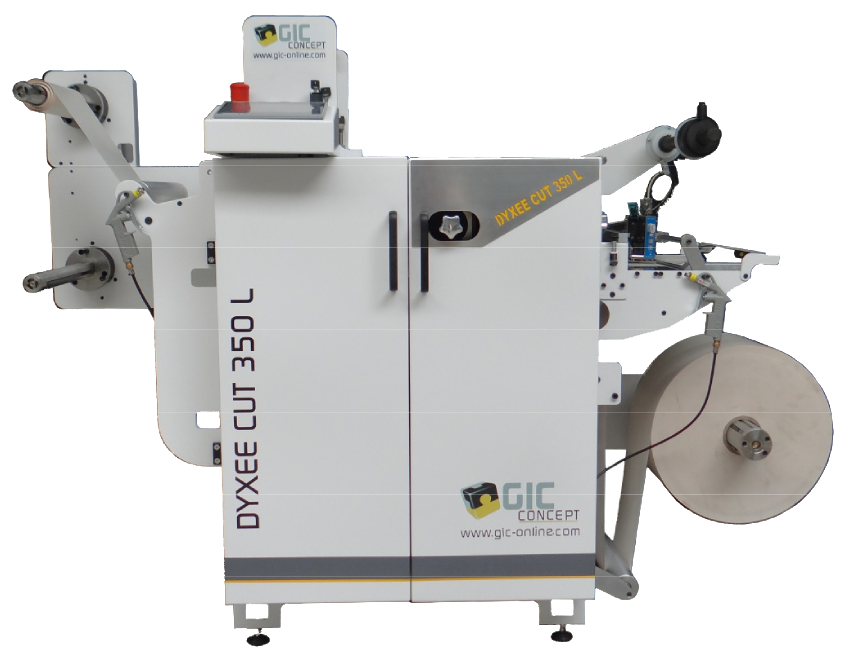

The DYXEE CUT 350 L embellishment and finishing solution, is a semi-rotary die-cut module for adhesive labels. A particular attention has been given to the ease of use and the optimization of the setup and make-ready times. This equipment is ideal to complete colour digital printers. The DYXEE CUT 350 L, is versatile and can be fitted with different optional devices. BASIC CONFIGURATION • 1 Unwinder • 1 Semi-rotary die-cut o Max. length continous die-cut: 16” o Max. length semi-rotary die-cut: from 3 to 13” o 1 matrix removal with servo driven roller o Quick set up con auto register • 1 Slitting system • 2 Rewinder o 2 pneumatic shafts Ø 76 mm o Ø 500 mm max. in simple configuration o Ø 330 mm max. in double configuration TECHNICAL CHARACTERISTICS • Web width: 350 mm • Speed: 50 m/min • Paper weight: 50 à 200 microns • Substrates: adhesive • Unwinder max. reel diameter: 500 mm • Semi-rotary die-cut with a 16’’ cylinder • Possible rotary die-cut • Label counting • Matrix rewinder • Slitting system with 3 blades • Rewinder max. reel diameter: 500 mm OPTIONS • Lamination • On-line kit on-line for Konica Minolta C71cf printer • Flexographic unit • Creajet® digital ink jet bar • Hot stamping • Cold stamping • Inspection camera • Selective varnish • Ultrasonic web guide
